Foam-filled fenders With Chain Tires Net for efficient crash protection.
Foam Filled Fenders Description
The high material closed cell foam core used inside the fenders also provides unsinkability during operation, should the integrity of the elastic skin be compromised, should such an accident occur then the fenders can also be effortlessly lifted Fix back to original performance.
Foam fenders are generally very low maintenance due to the tapered shape and low abrasive materials used in construction. To protect the main body of the fender, chains and tire nets are also provided on all sizes of fenders. If you want it to be stronger, take into account the weight of the hull itself. You can choose to add chains and tire nets, which will better protect the fender itself. Thus inspecting the service life of the factory.
Foam density of fender, thickness of polyurea, number of inner cord layers, type of fender can be customized by customers
It has the following typical characteristics:
Solid foam filled polyurethane fenders offer flotation properties compared to typical compression fenders
Performance and installation location are not affected by tidal range
• Compared with inflatable fenders, there is no inspection and inflation required for use; it is maintenance-free:
No explosion hazard, more secure
• Better energy absorption and lower reaction forces than pneumatic fenders
• The surface of the fender can be sprayed with various colors: the product is smooth and beautiful. It can be customized to spray the customer's company's logo.
•Using chain suspension, easy to install, easy to move, free to choose the chain tire net, increase
Service life of fenders
| Model | D (mm) | L (mm) | Compressibility 60% | |
| counter-force (KN) | Energy Absorption (KJ) | Weight (kg) |
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |

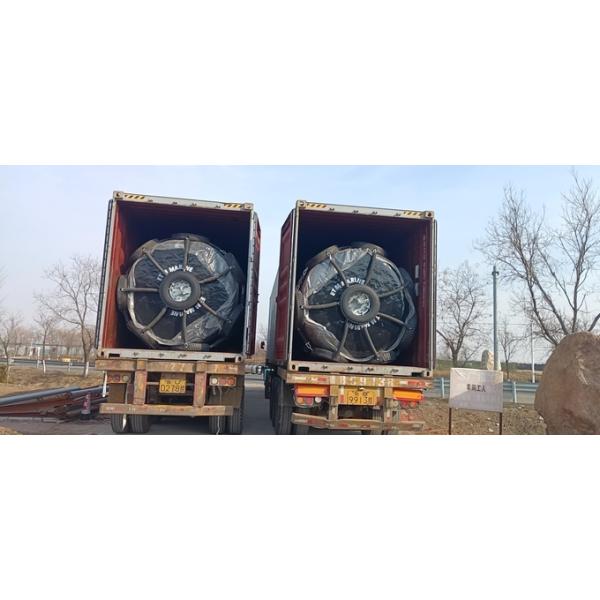

Fender Shipment
Toolbox
Free customer toolbox for replacement of usual accessories and maintenance of fenders.
